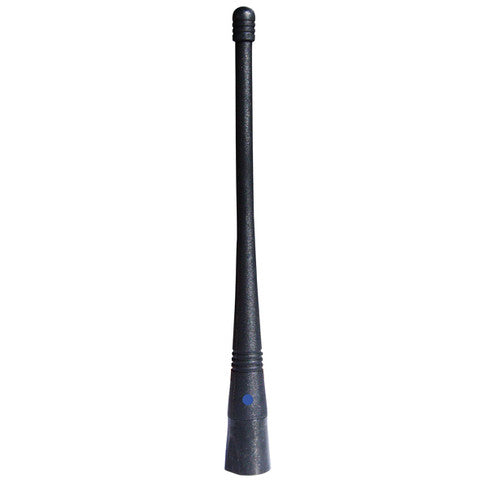

RFI SW125 UHF 1/4 Wave Whip-only (470-490 MHz); Black - Blue Dot

RFI SW125 UHF 1/4 Wave Whip-only (470-490 MHz); Black - Blue Dot

Regular price $25.00 AUD
Regular price Sale price $25.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 1 left

In stock, ready to ship
View full details

RFI SW125 UHF 1/4 Wave Whip-only (470-490 MHz); Black - Blue Dot

The SW120 series is a range of low profile, flexible ¼ wave whips which provide excellent omnidirectional performance when mounted high on a vehicle. They make an ideal roof mount antenna when coupled with either an MB10/MB12 or on to a CD90/900 Series elevated feed choke for other mounting locations. They are available either pre-tuned to specific bands (380MHz to 520MHz) or in the case of the SW120, field tuneable from 400-520MHz. By the nature of their location, these types of antennas are generally exposed to extreme conditions. The SW120 Series are constructed from twisted stainless steel wire, surrounded by an injected UV stabilised TPU radome which results in a flexible yet robust antenna.

Features
• Omnidirectional unity gain performance
• Robust UV stable construction
• Supplied pre-tuned to specific bands and colour coded for easy identification
• SW120 is field tuneable from 400-520MHz
• Mounts to a standard 5/16” – 26 TPI base (MB10 or MB12)

Specifications
:

Brand RFI
Frequency MHz 806 - 870
Tuned Bandwidth Full. No tuning required
VSWR <2.0:1
Power [W] 100
Frequency Range [MHz] 470 - 490
Band 470 - 490MHz
Tuning Supplied pre-tuned
Cable And Connector Not included, order separately
Whip Length mm 135
Whip Material Flexible stranded stainless steel whip covered by black TPU radome
Packaging Clear Bag
Nominal Gain dBq Unity
Antenna Type Omni
Antenna Application Vehicle Antenna
Frequency Band UHF 380-520 MHz
Antenna Configuration SISO



Documentation

SW125 Technical Specifications
