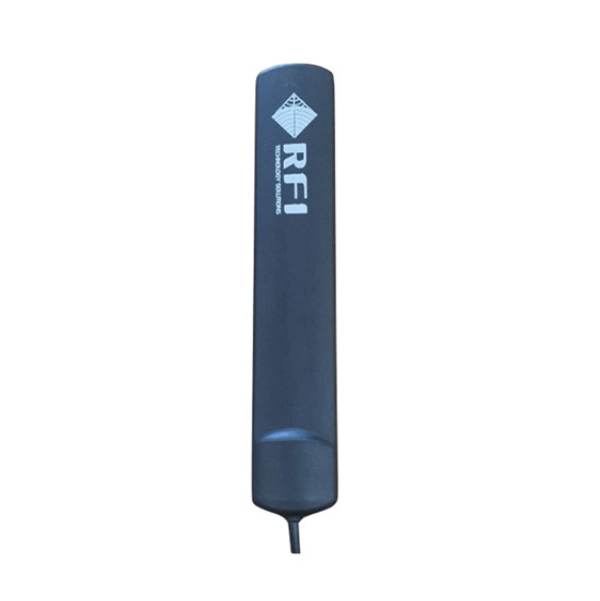

RFI T5-3M-FME 5G LTE Internal Glass Mount Antenna (617-5925 MHz); 3m FME(F)

RFI T5-3M-FME 5G LTE Internal Glass Mount Antenna (617-5925 MHz); 3m FME(F)

Regular price $42.00 AUD
Regular price Sale price $42.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock, ready to ship
View full details

RFI T5-3M-FME 5G LTE Internal Glass Mount Antenna (617-5925 MHz); 3m FME(F)

RFI brings 5GNR technology to our T5 Series by offering our new ground plane independent adhesive mount antenna. This solution combines wideband multi-application device functionality that caters to 5GNR, 4G LTE, 3G, 2G and CDMA technologies operating within 617 MHz to 5925 MHz frequencies. The T5 Series is a low-cost solution with easy installation through the simple peel-and-stick application making this antenna ideal for commercial, industrial and consumer industries.

The T5 Series brings exceptional signal strength and quality in a 360-degree radiation pattern due to its omni-directional design while maintaining high peak gains and efficiencies. This antenna is designed with CAT-M technology taking LTE into the next generation of IoT applications making it fully compatible with existing LTE networks and reducing implementation costs for carriers via backward-compatibility.  In addition, this antenna is a great solution to prepare for worldwide future technology such as NR (New Radio). The T5 Series offers NB-IoT (CAT-M2) designed to send data directly to primary servers eliminating the need for a gateway and keeping implementation costs low.

Key Features:
•Wideband frequency range; 617 to 5925 MHz
•Adhesive mount
•Ground Plane Independent
•Compact size: 116 x 22 x 6.7 mm

Cable And Connector 3m LL100, FME female
Tuning Supplied pre-tuned
Band 617-960 / 1427-2690 / 3300-5000 / 5150-5925 MHz698-960MHz / 1710-2170MHz / 2500-2700MHz
Connector FME(F)
Nominal impedance 50
Power w 25
Nominal Gain Dbi 3.2 / 3.6 / 1.0 / 1.6
Polarisation Linear
VSWR <2.0:1
Termination FME Female
Tuned bandwidth Full
Length [mm] 116
Width [mm] 22
Brand RFI


T5 Specifications
