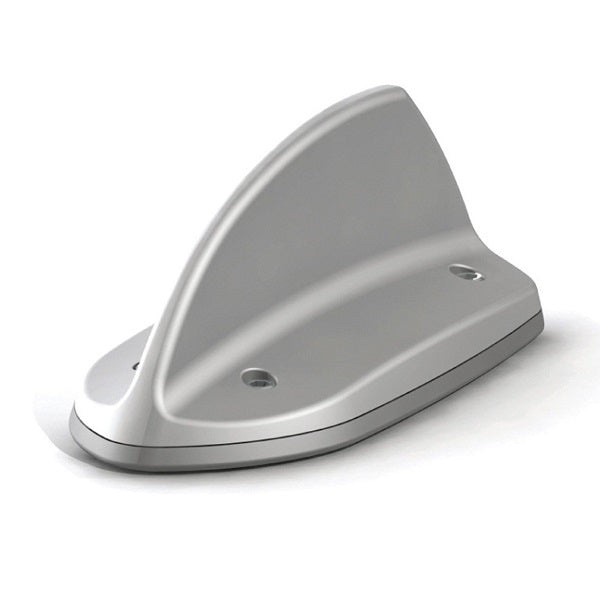

RFI TLA4100 Multiband Transit Antenna 698-2700 MHz and 5.8 GHz

RFI TLA4100 Multiband Transit Antenna 698-2700 MHz and 5.8 GHz

Regular price $285.00 AUD
Regular price Sale price $285.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock, ready to ship
View full details

RFI TLA4100 Multiband Transit Antenna 698-2700 MHz and 5.8 GHz

The TLA4100/4200 Antenna is designed specifically for rail, light rail and bus applications and other similarly demanding transit or stationary applications.

With a VSWR less than 2:1 covering 800-5800 MHz (off a ground plane) and 2.5:1 (full band on a ground plane), the TLA4100/4200 operates in all cellular bands globally plus the 2.4 & 5.8 GHz ISM bands. In addition the TLA4200 incorporates an active GPS antenna for asset tracking and AVL applications.

Designed utilising a high impact, UV stabilised low Flame, Smoke and Toxicity (FST) radome, the TLA4100/4200 is IP68 rated to fully protect against the ingress of dust and water.

Designed to meet the following European Traction Industry Standards:
• NF-F-16-101/102 (materials standard)
• EN50155 (vibration standard)
• EN50124-1 (electrical isolation standard)
• Functions with or without a ground plane*
* Nominated gain achieved using a 1m2 ground plane

Features TLA4100:
• Wide band coverage from 698MHz to 890MHz
• All welded construction for reliability
• Excellent front-to-back ratio
• Alodined conductive plating for performance reliability
• Designed to minimize the generation of PIM

Specifications TLA4100:

Band 698-960MHz / 1710-2700MHz / 2400-2700MHz & 5700-5800MHz
Tunable Bandwidth Full. No tuning required
Nominal Gain dBi 5 @ 698 - 960MHz / 6 @ 1710 - 2700MHz / 3 @ 2400-2700MHz / 7 @ 5700-5800MHz
Power W 50
VSWR <2:1
Height mm 90 including gasket
Termination Antenna Port: Fixed N-female



Antenna Connection: TLA4100

This antenna has an N female connector integrated into the underside of the antenna body.

****There is no cable supplied with this antenna.

N Female Connector (pictured)

Also available is a 10.0Mtr cable extension N Plug to SMA Plug - 9207N-10
