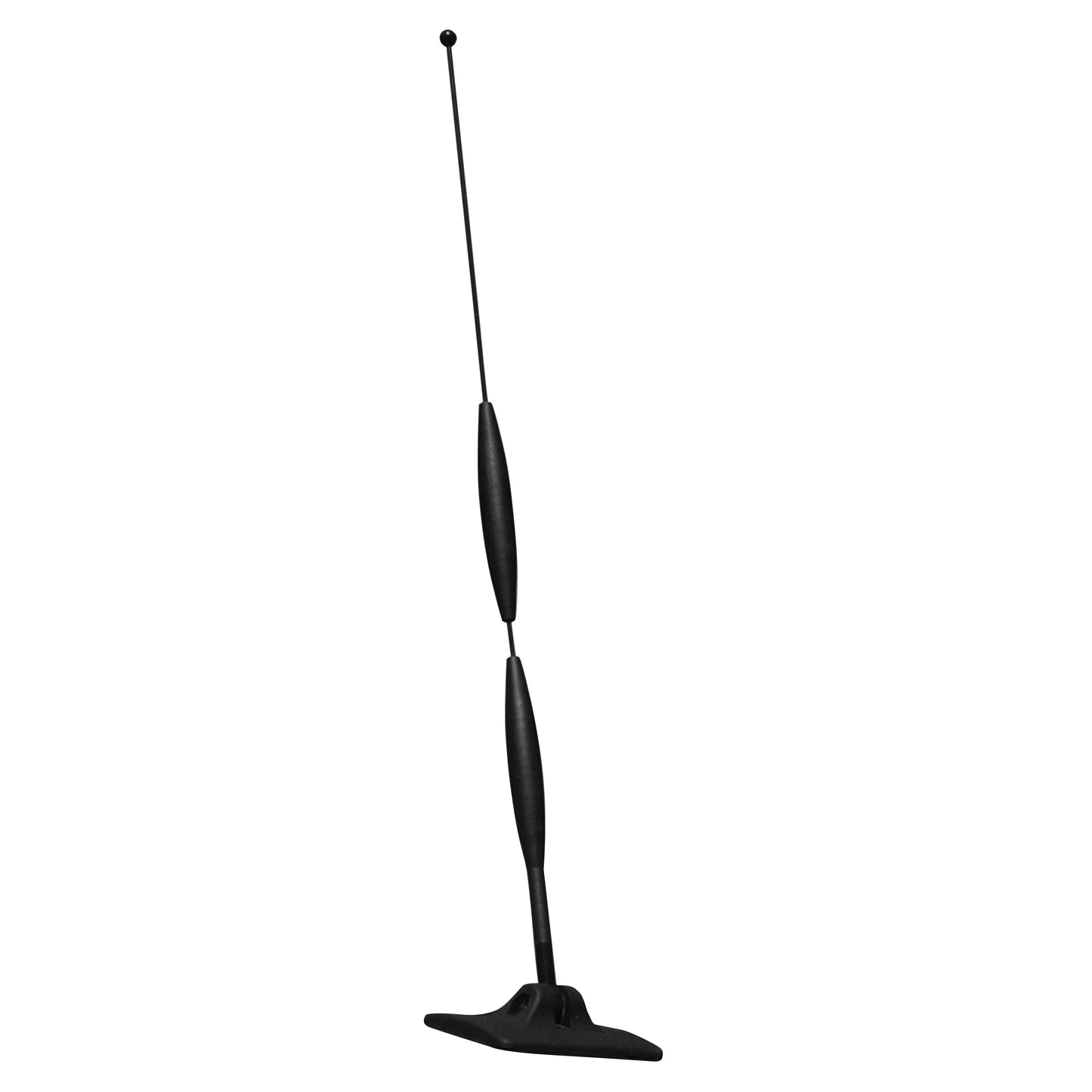

RFI XG884 X-glass™ Cellular Multiband 824-960MHz/1710-2170MHz
RFI XG884 X-glass™ Cellular Multiband 824-960MHz/1710-2170MHz
Couldn't load pickup availability
RFI XG884 - X-glass™ Cellular Multiband 824-960MHz/1710-2170MHz
The XG884 utilises a slot radiator in the coupling box, with a patch element housed in the mounting foot. The patch element is x-shaped to allow the coupling of multiple bands very effectively. The whip element is fully moulded with dual phasing coils, the result being an antenna that provides abundant gain in all bands.
Featuring a new-look mounting foot and coupling box, XG884 is supplied complete with a 5Mtr pre-terminated lead of low loss, fully shielded coaxial cable.
Features:
• True multi band performance at 3G-850, GSM-900/GSM-1800 and 3G-2100
• Fully shielded low loss FME pre-terminated 5Mtr cable with A-87 (FME-MPL) adapter supplied
• Available with additional adapters on request
• XG884 supplied with 3dB gain whip & Unity gain stubby whip
Specifications:
| Band | 824-960MHz / 1710-2170MHz |
| Tunable Bandwidth | Entire specified band <2.5:1MHz |
| Nominal Gain dBi | 0 or 3 depending on whip used |
| Tuning | Supplied pre-tuned |
| Power W | 50 |
| Cable and Connector | Pre-terminated lead with 5m flexible foam dielectric low loss fully shielded cable pre-terminated with FME nipple connector for transceiver connector and SMA male to suit coupling box. A-87 FME-MPL adaptor supplied. |
| Whip Material | One piece black chrome plated stainless steel with plastic over moulding |
| Whip Length mm | 155 (0dB) / 352 (3dB) |
| VSWR | <2.5:1 |
Documentation
View the XG884 Technical Data Sheet
