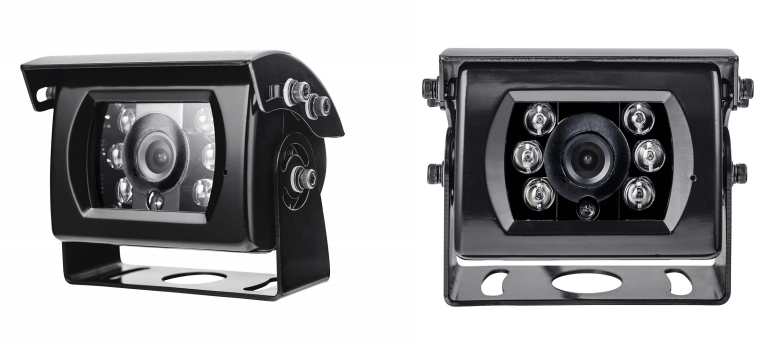

Smart Park CAM150 Camera suitable for CCS562 and CCS702 monitor/systems only
Item Code: CAM150
Advantages...
- 100% Waterproof (IP68 Tested)
- Camera with inbuilt Microphone
- Sony SuperHAD CCD image sensor
- IR Night Illumination
- All Metal Heavy Duty Housing
- Plug n Play with Zorg Monitors
- 10mtr Cable included
-
Three Year Warranty
|
Item |
CAM150 |
|
Image Type |
Color CCD |
|
Number of effective pixels |
500 (H) × 582 (V) approx. 0.29M pixels |
|
Total number of pixels |
537 (H) × 597 (V) approx. 0.32M pixels |
|
Image Size |
Diagonal 4.5mm (Type 1/4”) |
|
Lens |
Focal Length 3.6mm Maximum Aperture F2.0 |
|
Angle of view |
110° diagonal |
|
View angle (Horizontal) |
82° |
|
View angle (Vertical) |
60° |
|
Synchronization |
Internal |
|
Horizontal Resolution |
420 TV Line |
|
Signal to Noise Ratio |
48dbm |
|
Video signal (75ohm) |
1.0Vp-p |
|
LUX |
0 LUX With IR LED (ON/OFF) |
|
IR switch control |
Photosensing automatic control |
|
Audio input |
Condenser Microphone |
|
Power Requirements |
DC 12V/24V |
|
Power Consumption |
(Max) 1.2W |
|
Operating Temperature Range |
-30° ~ +85° ℃ RH95% Max |
|
Storage Temperature Range |
-40° ~ +105° ℃ RH95% Max |
|
Dimension |
82 (L) x 73 (W) x 58 (D) mm |
|
Weight |
Approx (Including Mounting Bracket) 380g |
|
Vibration |
5.0G |
|
Waterproof Grade |
IP69K |
3 Year Warranty
Documentation
See our brochure Camera CAM150 - click here
