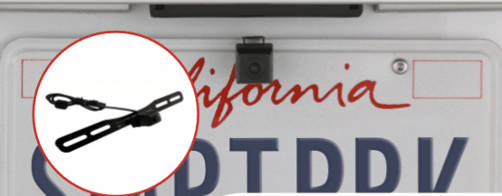

Smart Park CAM337 Flex Camera
Smart Park CAM337 Flex Camera
Smart Park CAM337 Flex Camera
Item Code: CAM337 (Replacement for CAM335)
Advantages...
- Extremely compact design
- 170 degree wide angle lens
- High resolution digital imager
- Built in microphone
- Very good low light capability
- 9 programmable parking guidelines
- Mounting license plate & mini bracket included
- Mirror and normal image function
- 100% waterproof (IP68 tested)
- Easily fits any vehicle
--------------------------------------------------------------
CAM337 TAIL WITH PROPRIETRY PLUG - 4 PINS
CAM337 POWERED PATCH LEAD 4 PIN TO RCA (included)
SPECIFICATIONS
Item |
CAM337 |
Dimension (mm) |
21.5(L) x 21.5(W) x 21.5(D) |
Image Sensor |
1/3” PC1058 color COMS |
Wide Angle Lens |
170° |
View angle (Horizontal) |
150° |
View angle (Vertical) |
90° |
IR LED |
No |
Microphone |
Yes |
Power Requirements |
DC 6V ~ 36V |
Power consumption |
≤ 1.2W |
Mirror control |
Yes |
Video Signal (NTSC) |
NTSC |
Video signal output |
960H x 576V |
Effective Pixel |
976H x 592V |
Resolution |
600 TV Line |
Signal / Noise Ratio (dB) |
> 43dB |
Illumination (min.) |
0.1 Lux |
Ingress Protection |
IP68 |
Operating Temperature Range |
-30°C ~ +80°C RH90% |
Storage temperature |
-40℃~+105℃ RH95% Max |
Weight |
(including Mount Bracket) 83g |
Guide Line |
Yes |
2 Year Warranty
