Smart Park CCS562 5.6" Commercial Camera System
Item Code: CCS562
Advantages...

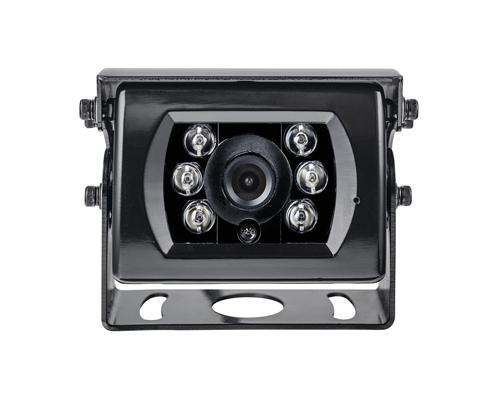

- CAM150 -Heavy Duty Metal Housing
- Sony SuperHAD CCD image sensor
- 100% Waterproof (IP68/IP69)
- Inbuilt Microphone
- IR night vision Capable
- Adjustable sunshield
- Digital High resolution LCD monitor
- Monitor - 2 camera inputs
- Cable harness included
- Adjustable sunshield included
- Multiple Languages in Menu
- Complete Plug and Play Harness Included
|
Monitor |
LCD56 |
|
LCD Profile Wide-Screen Ratio |
5.6” 4:3 |
|
Resolution |
640 x (RGB) x 480 |
|
Brightness (cd/m2) |
350 |
|
Contrast Ratio |
500:1 |
|
Response Time (ms) (at 25°C) |
30ms |
|
Power Requirements |
DC 12V/24V |
|
Power Consumption |
5W |
|
Camera power output |
DC 12V |
|
Digital LCD Resolution |
307K pixels |
|
Speaker |
16 Ω 0.5w |
|
Operating Temperature Range |
-30° ~ +70° ℃ |
|
Storage Temperature Range |
-40° ~ +105° ℃ |
|
Dimension |
165 (L) x 115 (W) x 29 (D) mm 2 |
|
Weight |
340g |
CAMERA SPECIFICATIONS
|
Camera |
CAM150 |
|
Image Type |
Color CCD |
|
Number of effective pixels |
500 (H) × 582 (V) approx. 0.29M pixels |
|
Total number of pixels |
537 (H) × 597 (V) approx. 0.32M pixels |
|
Image Size |
Diagonal 4.5mm (Type 1/4”) |
|
Lens |
Focal Length 3.6mm Maximum Aperture F2.0 |
|
Angle of view |
110° diagonal |
|
View angle (Horizontal) |
82° |
|
View angle (Vertical) |
60° |
|
Synchronization |
Internal |
|
Horizontal Resolution |
420 TV Line |
|
Signal to Noise Ratio |
48dbm |
|
Video signal (75ohm) |
1.0Vp-p |
|
LUX |
0 LUX With IR LED (ON/OFF) |
|
IR switch control |
Photosensing automatic control |
|
Audio input |
Condenser Microphone |
|
Power Requirements |
DC 12V/24V |
|
Power Consumption |
(Max) 1.2W |
|
Operating Temperature Range |
-30° ~ +85° ℃ RH95% Max |
|
Storage Temperature Range |
-40° ~ +105° ℃ RH95% Max |
|
Dimension |
82 (L) x 73 (W) x 58 (D) mm |
|
Weight |
Approx (Including Mounting Bracket) 380g |
|
Vibration |
5.0G |
|
Waterproof Grade |
IP69K |
3 Year Warranty
Documentation
See our brochure CCS562 - click here
Installation and Operating Manual CCS562 & CCS702 - click here
