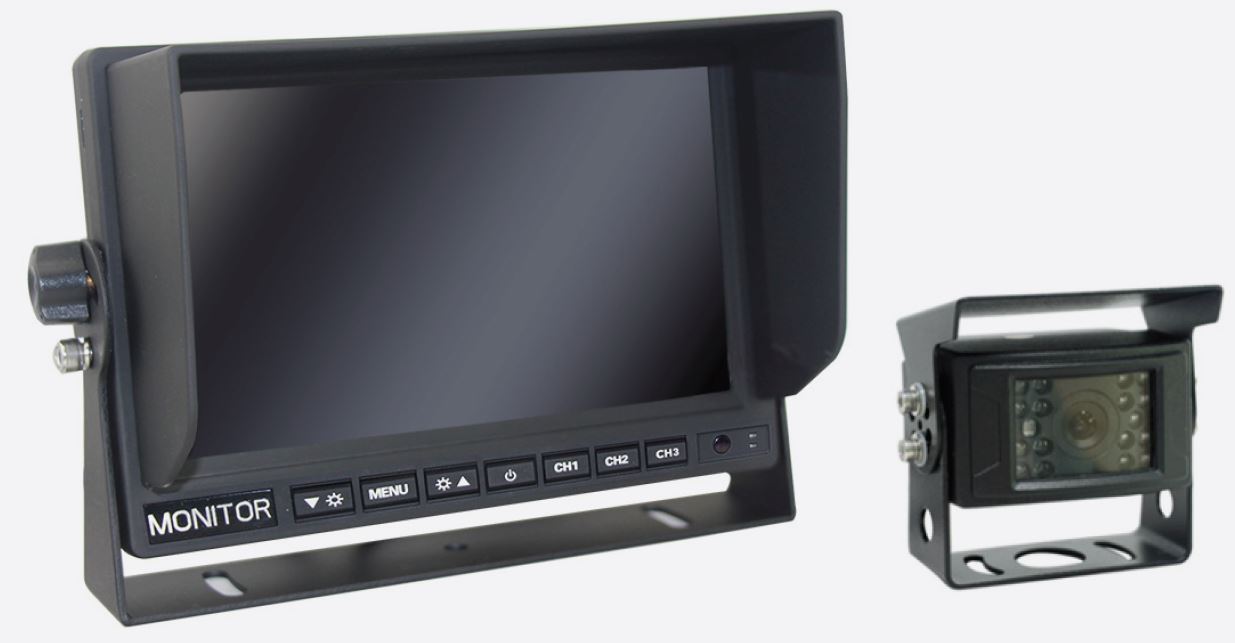

Smart Park CCS703 7" Commercial Camera System - 7" LCD 3 Input control module w/ CAM155 & 20M ext cable
Item Code: CCS703
Smart Park 7" Monitor Specifications
|
Housing Colour |
BLACK |
|
Display Size |
7” INCH |
|
Type of Display |
TFT |
|
Camera Inputs |
3 AV INPUTS |
|
Standard (PAL/NTSC) |
YES |
|
Auto Detect |
YES |
|
Video Output |
CVBS SIGNAL |
|
Standard (PAL/NTSC) |
YES |
|
Resolution |
800*RGB*480 |
|
Brightness |
500cd/m2 |
|
Guidelines |
YES |
|
Mirror Function |
YES |
|
Picture Adjustable |
YES |
|
Loudspeaker |
YES |
|
Menu Languages |
ENGLISH, SIMPLIFIED CHINESE |
|
Remote Control |
NO |
|
Operating Voltage |
DC 10-32V |
|
Current Consumption |
5W |
|
Cable Length at Monitor |
30cm |
|
Operating Temperature |
-20°C ~ +70°C |
|
Storage Temperature |
-30°C ~ +80°C |
|
Housing Material |
ABS |
|
Trigger |
3 |
|
Bracket |
U BRACKET |
|
Sunshade |
REMOVABLE |
|
Housing Colour |
BLACK |
|
Image Sensor |
SONY |
|
Type (CMOS/CCD) |
CCD |
|
Resolution |
700TVL |
|
Viewing Angle |
D/150° |
|
Standard (PAL/NTSC) |
NTSC |
|
IR Illumination |
YES |
|
Light Sensitivity |
AUTO |
|
Backlight Compensation |
AUTO |
|
White Balance |
AUTO |
|
Mirror Function |
MIRROR |
|
Operating Voltage |
12V |
|
Cable Length at Camera |
30cm |
|
Operating Temperature |
-20°C ~ +70°C |
|
Storage Temperature |
-30°C ~ +80°C |
|
Protection Class |
IP69K |
|
Audio |
YES |
|
Mechanical Vibration |
4G |
|
Housing Material |
ALLUMINIUM ALLOY |
2 Year Warranty
Documentation
See our brochure CCS703 - click here
