RFI - PTP DISTRIBUTIONS

SKU:G31-TM-CSM600-MAG

Cel-Fi GO G31-TM-CSM600-MAG - Telstra Low Profile Vehicle Pack incl CSM600 Magnetic Base Antenna

Name: Cel-Fi GO G31-TM-CSM600-MAG - Telstra Low Profile Vehicle Pack incl CSM600 Magnetic Base Antenna
Brand: RFI - PTP DISTRIBUTIONS
SKU: G31-TM-CSM600-MAG
Price: 1035.0 AUD
Availability: OutOfStock

$1,035.00 AUD

Sale Sold out

Tax included. Shipping calculated at checkout.

Quantity

Out of stock

View full details

Cel-Fi GO Mobile Telstra + RFI CSM600 Magnetic Base Donor Antenna + T5-4M-SMA Internal Server Antenna (G31-TM-CSM600-MAG)

The Cel-Fi GO Telstra Mobile Smart Signal Repeater, the first carrier-class mobile cellular coverage solution to feature industry-leading 100 dB system gain and Nextivity’s unconditional network safe guarantee. Cel-Fi GO Mobile leverages artificial intelligence and award-winning Intelliboost signal processing to deliver the industry’s best voice and data wireless performance for mobile subscribers on the move. Cel-Fi GO Mobile is IP54 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for trucks, vehicles, RVs, earth moving equipment, caravans/campers and boats.

What's included in the bundle...

G31-TM-CSM600-MAG
1x CEL-FI-GO Telstra 3/5/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead
1x RFI T5-4M-SMA Internal Server Antenna with 4M cable SMA male

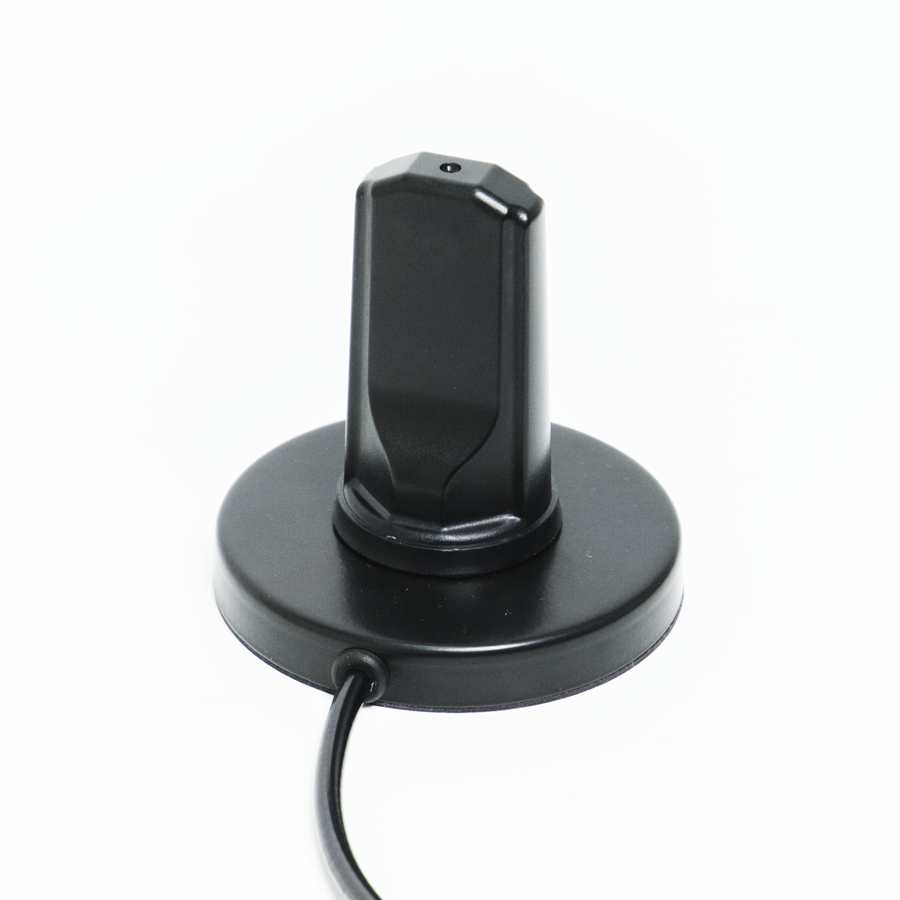

1x RFI CSM600-MAG-4M-SMA Magnetic base Black Donor Antenna with 4M cable SMA(M)

CEL-FI GO is a 3G/4G cellular signal amplifier that uses Nextivity's award winning technology to provide up to 100 dB of signal gain, while unconditionally protecting the operator's network.

FEATURES:

3G / 4G / 4GX Voice and Data
Multi-User Mobile Coverage
Multi-Band Support
Indoor / Outdoor IP54 Rated
12-24VDC
Network Safe
Configuration for Mobile or Stationary version via Wave app

TELSTRA MOBILE SIGNAL AVAILABILITY

Check out the Telstra mobile signal coverage map

3-BAND CEL-FI GO MOBILE

The evolved smart signal booster that can amplify cellular signals up to 100 dB.

The Cel-Fi GO has a rugged design to withstand harsh conditions including dust and water exposure. Cel-Fi GO utilizes nanotechnology to produce a thin film coating across the entire PCB assembly. This coating, combined with an industrial design for harsh conditions, enables the device to support weather conditions that include water, dust, and dirt.

Get setup in 5 easy steps

Cel-Fi GO Mobile Telstra - CD7195-B (6.5dBi) Antenna - Point to Point Distributions

SUPPORTED NETWORKS

Telstra Network

IMPORTANT NOTE

Cel-Fi GO will boost a single band at a time (either 3G 850 or 4G 700 or 4G 1800). It is highly recommended to leave the unit in 3G mode to ensure voice calls are received. Voice on 4G (VoLTE) will only work in selected areas and with later model phones.

SPECIFICATIONS

Available Frequency Bands (MHz)	Telstra Band 3/8/28
Frequency Range	1800Mhz, 900Mhz and 700Mhz
RF Gain	100dB
RF Connectors	SMA
Power Supply	+ 12V CLA adapter
Ambient Temp. Range	0° to 65°C
Environment	IP54
Weight (inc. frame)	600gm
Dimensions	255mm(W) x 87mm(D) x 28mm(H)
Output Impedance	50ohms
Current Consumption	15W
DC Supply	9.6 to 28.8 VDC via external supply
Case	One piece extruded Aluminium
Frequency - Layered Navigation	Multiband

Warranty: 2 Years.

Also available in these antenna configurations

Cel-Fi GO Mobile Telstra - No Antenna

Cel-Fi GO Mobile Telstra + T7-4M-SMA Internal Antenna

Cel-Fi GO Mobile Telstra + CD7194-B (5.5dBi) Antenna 65cm

Cel-Fi GO Mobile Telstra + CD7197-B (7.5dBi) Antenna 114cm

Cel-Fi GO Mobile Telstra + CDR7195-B (6.5dBi) Antenna 93cm

Cel-Fi GO Mobile Telstra + CDQ7195-B (6.5dBi) Antenna 97cm

Cel-Fi GO Mobile Telstra + CDQ7197-B (6.5dBi) Antenna 121c m

Documentation

Cel-Fi GO Data Sheet

Cel-Fi GO Mobile Quick Start Guide

Cel-Fi GO Trouble Shooting Support

Cel-Fi GO Technical Guide

RFI CSM600 Specifications

T7-4M-SMA Product Data Sheet

Wave App

Nextivity Wave App - iPhone, Android and PC

What's in the Box

G31-TM-CSM600-MAG
1x CEL-FI-GO Telstra 3/5/28M mobile unit
1x CEL-FI-GO 12/24VDC CLA power lead.
1x RFI T5-4M-SMA Internal Server Antenna with 4M cable SMA male
1x RFI CSM600-MAG-4M-SMA Magnetic base Black Donor Antenna with 4M cable SMA(M)

Availability

Antenna Options

Also available in these antenna configurations
