RFI CD5000-B UHF CB Mobile 477Mhz Broomstick Antenna 907mm

Name: RFI CD5000-B UHF CB Mobile 477Mhz Broomstick Antenna 907mm
Brand: RFI
SKU: CD5000-B
Price: 173.0 AUD
Availability: InStock

$173.00 AUD

Sale Sold out

Tax included. Shipping calculated at checkout.

Quantity

In stock, ready to ship

View full details

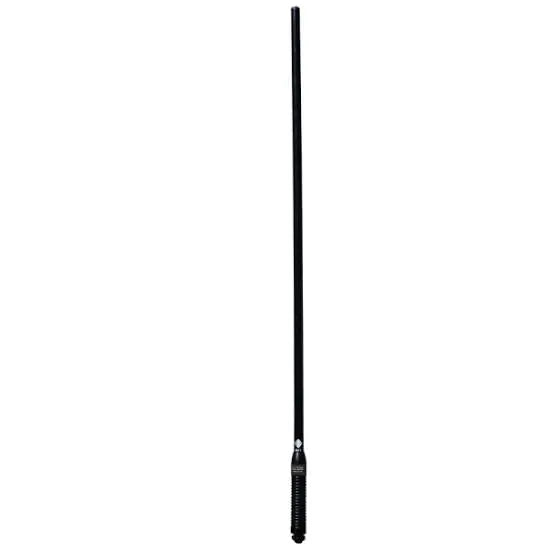

RFI CD5000-B UHF CB Mobile 477mHZ Broomstick Antenna Black - 907mm

This antenna is extremely robust in design with the patented PCB designed radiating element housed in a black or white (CD5000 W) fibreglass radome fitted to an integral heavy duty electro-polished stainless steel spring.

With a 13mm stud mount and ground plane independent design, this antenna may be installed onto a number of mounting brackets such as mirror, bull bar, gutter or fender mounts and are ideal for installations in commercial vehicles, four wheel drives and trucks. They can even be used as a base station antenna due to their ground plane independent design.

Features CD5000-B:

• 5 dB Gain ideal for fringe areas and country applications
• Robust design for heavy duty applications
• Available with GPS sub-assembly on request
• Available in white - CD5000-W
• Patented PCB based collinear design offering the ultimate in pattern and gain stability.

Specifications:

Band	477MHz
Tunable Bandwidth	Full. No tuning required
Nominal Gain dBi	5
Tuning	Supplied pre-tuned
Power W	25
Cable and Connector	5.0m 9006 supplied with FME-101 connector terminated and UHF adapter supplied
Whip Material	PCB radiating element housed in tapered high impact fibreglass
Suggested Installation	Bullbar or guarg
Whip Length mm	907mm
VSWR	<1.5:1
Mounting	Threaded Stud

Documentation

CD5000 Technical Data Sheet

Related Products

Also available in white - CD5000-W
